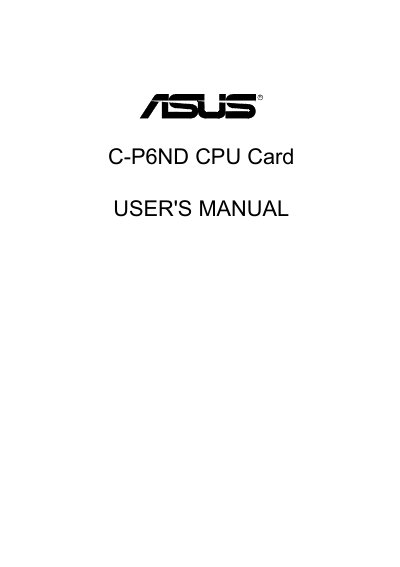

C-P6ND CPU Card User's Manual, includes C-P6ND's use instructions, system requirements, installation instructions, use instructions, troubleshooting etc.
This manual introduces the ASUS C-P6ND CPU Card, detailing its features such as dual Pentium Pro processor support, Intel 440FX chipset, PS/2 connectors, ECC memory checking, and internal L2 cache. It also includes a checklist of items supplied with the card.
Installation instructions cover jumper settings for CPU‑bus frequency ratios, voltage regulator selection, and fan connector wiring. Subsequent sections describe BIOS configuration, IDE hard‑disk setup, and the Desktop Management Interface (DMI) utility for managing system information.
| Processor support | Dual 150‑200 MHz Pentium Pro processors |
|---|---|
| Chipset | Intel 440FX PCIset |
| PS/2 connectors | PS/2 mouse and keyboard connectors on bracket |
| ECC memory support | Error Checking and Correcting for parity DRAM modules |
| Internal L2 cache | Supports built‑in 256 KB/512 KB L2 cache |
It supports dual 150‑200 MHz Pentium Pro processors installed in the ZIF socket 8.
The ratios are set with jumpers JP13, JP14, JP15, and JP16 according to the desired multiplier.
The DMI (Desktop Management Interface) Configuration Utility allows editing and saving of the Management Information Format Database.
