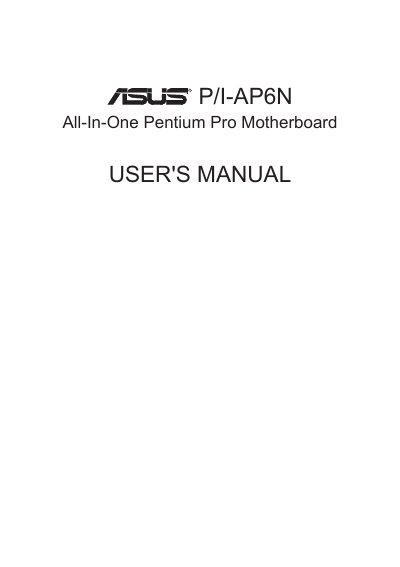

ASUS P/I-AP6N Motherboard User Manual

This is the user manual for ASUS P/I-AP6N motherboard

Brand: ASUS
Category: Other
Document type: User Manual
Language: English
Pages: 96
File format: PDF
File size: 1.2 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: ED3B61E2407A265A17ADEB77C334845D
PDF: ASUS P/I-AP6N Motherboard User Manual PDF

About this manual

This manual covers the ASUS P/I-AP6N motherboard, detailing its features, step‑by‑step installation, BIOS configuration, and driver setup for various operating systems.

It describes the supported Pentium Pro CPU, memory modules, onboard graphics, IDE controller, and includes troubleshooting and diagnostic procedures.

What's inside

Introduction
Features
Installation
BIOS Setup
Desktop Management Interface
VGA Drivers
Windows 95
Windows NT
Troubleshooting

Specifications

Supported CPU	150‑200 MHz Pentium Pro (Socket 8)
Chipset	Intel 440FX PCIset
Memory type	72‑pin SIMMs (4 MB, 8 MB, 16 MB, 32 MB, 64 MB)
Maximum memory capacity	384 MB
Onboard VGA memory	2 MB DRAM (upgradeable to 4 MB)
IDE controller	PCI Bus Master IDE, PIO modes 3/4, DMA mode 2

Frequently asked questions

How does the BIOS detect IDE hard drives during boot?

Select the Auto setting for detection in the BIOS, which will automatically identify attached IDE drives at startup.

What CPU speed does the motherboard support?

It supports a Pentium Pro processor running at 150 MHz to 200 MHz in a ZIF Socket 8.

What is the maximum amount of RAM the board can handle?

The board can address up to 384 MB of RAM using 72‑pin SIMM modules.
