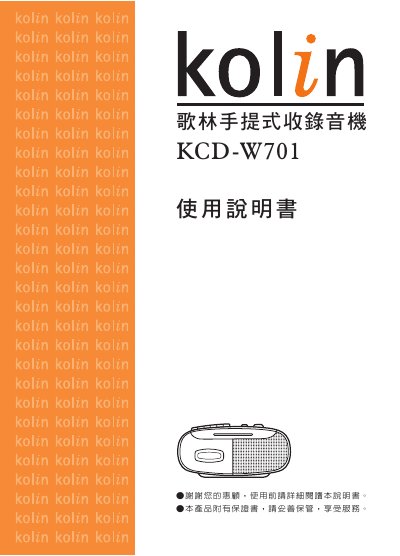

This manual introduces the Kolin KCD-W701 portable cassette recorder, describing its features, safety warnings, and the layout of its controls and connectors. It guides users through installation, battery replacement, and connecting the device to power.
Detailed sections cover how to operate the tape functions, adjust volume, tune AM/FM radio, use the built‑in microphone, and maintain the unit. Troubleshooting tips and full specifications are provided for reliable use. This manual is written in Chinese.
| Power supply | 110 V ~ / 60 Hz AC, 6 V DC (4 × AA batteries) |
|---|---|
| Power consumption | 4.8 W |
| Audio output power | 0.8 W (RMS) |
| P.M.P.O. output power | 32 W |
| Radio reception frequencies | AM 530‑1600 kHz, FM 88‑108 MHz |
Rotate the VOLUME knob on the front panel to increase or decrease the sound level.
Check that the power plug is inserted and the power switch is on, ensure the volume knob is turned up, verify the correct function (TAPE, AM, FM) is selected, and confirm a headphone is not plugged into the earphone jack.
