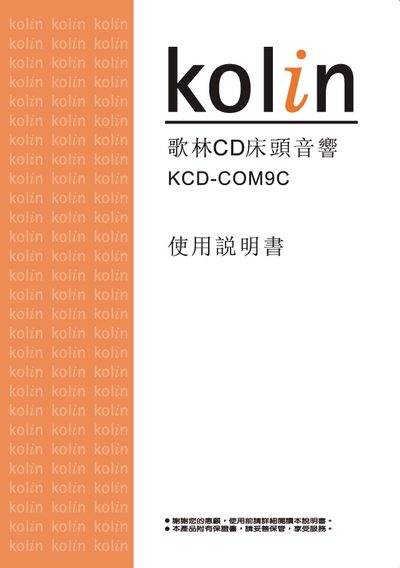

This manual covers safety precautions, control panel functions, battery installation, and connection guidelines for the Kolin KCD-COM9C CD player. It explains how to operate CD playback, cassette functions, FM/AM tuning, and programming features.
Additional sections include technical specifications, troubleshooting tips, and a list of service stations across Taiwan. The document is written in Chinese and includes diagrams of the main unit and remote controller.
| Output Power | 2 W |
|---|---|
| Frequency Response (Audio) | 20 Hz – 20 kHz |
| Signal‑to‑Noise Ratio (Audio) | 60 dB |
| FM Tuning Range | 87.5 – 108 MHz |
| AM Tuning Range | 530 – 1710 kHz |
| Power Supply | 110 V/60 Hz, 220 V/50 Hz |
| Power Consumption | 20 W |
| Main Unit Dimensions | 232 mm × 149 mm × 239 mm (L × W × H) |
Insert one CR‑2025 3 V battery following the polarity markings (+/‑) on the battery compartment.
Do not expose the unit to fire or water, avoid opening the case, keep the device away from heat sources, and disconnect power before servicing.
Press the REPEAT button; the display shows “RPT” to indicate repeat mode. Press again to cancel.
The unit can operate on 110 V/60 Hz or 220 V/50 Hz mains power.
