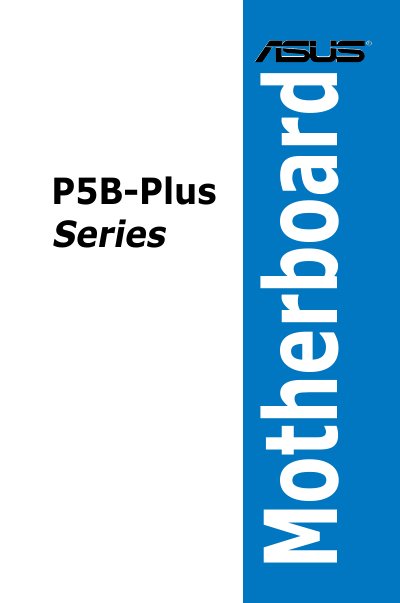

ASUS P5B-Plus Series User Manual

This document is a manual for the motherboard P5B-Plus Series ii E3077. It contains information about the product's features and specifications.

Brand: ASUS
Category: Other Computer Accessories
Document type: User Manual
Language: English
Pages: 172
File format: PDF
File size: 3.2 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: CABE26B1ADD8B3BE6353A94629536AB8
PDF: ASUS P5B-Plus Series User Manual PDF

About this manual

This manual introduces the ASUS P5B-Plus Series motherboard, covering package contents, special features, and an overview of the hardware layout, including CPU, memory, expansion slots, and connectors. It also details safety precautions, FCC compliance, and power‑up procedures.

Further sections guide users through BIOS configuration, utility software, RAID setup, and advanced features such as Hyper‑Threading, TPM, and USB options. An appendix lists CPU features and technical notes for supported processors.

What's inside

Product Introduction
Hardware Information
Powering Up
BIOS Setup
Software Support
Safety Information
FCC and Regulatory Statements
Appendix: CPU Features

Specifications

Supported CPU	Intel® Pentium® 4 LGA775 processors
PCI Express x1 slots	Available
PCI Express x16 slot	Available

Frequently asked questions

What safety steps should be taken before installing the motherboard?

Disconnect the power cable, unplug all device power cables before handling the motherboard, avoid short circuits, keep the system on a stable surface, and seek professional assistance for power‑related issues.

How do I enable Hyper‑Threading Technology on the P5B‑Plus motherboard?

Install a supported Intel® Pentium® 4 CPU, power up the system, enter BIOS Setup, go to the Advanced menu, and set the Hyper‑Threading Technology item to Enabled.
