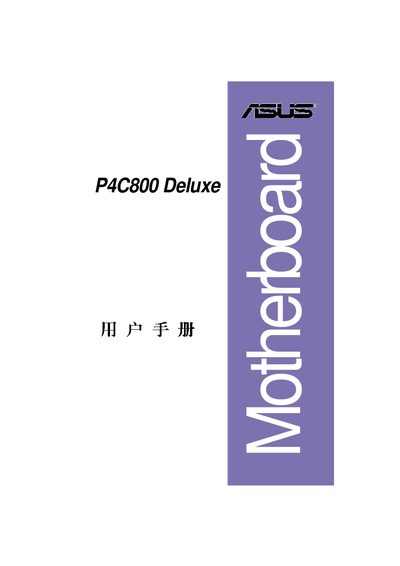

This document is a manual for the P4C800 Deluxe 2 C1224 motherboard. The motherboard features Jumper Free design and supports Socket 478 CPUs. It has multiple slots and interfaces, including DDR DIMM sockets, AGP slots, and USB ports. The motherboard also comes with a Wi-Fi slot and SMB20 connector.
This manual begins with safety precautions, reminding users to disconnect power, remove cables, and keep screws and other components away from the board to avoid short circuits. It also explains the product’s special features and overall layout.
Subsequent chapters cover hardware installation, BIOS setup, and software support, including detailed procedures for installing operating‑system drivers and configuring RAID, audio, and other utilities. This manual is written in Chinese.
| CPU socket | Socket-478 |
|---|---|
| AGP slot | AGP Pro/8X |
Insert the driver CD, open the Control Panel, select System, go to the Device Manager, locate the ‘Other devices’ node, choose the appropriate controller, and follow the on‑screen prompts to complete the driver installation.
