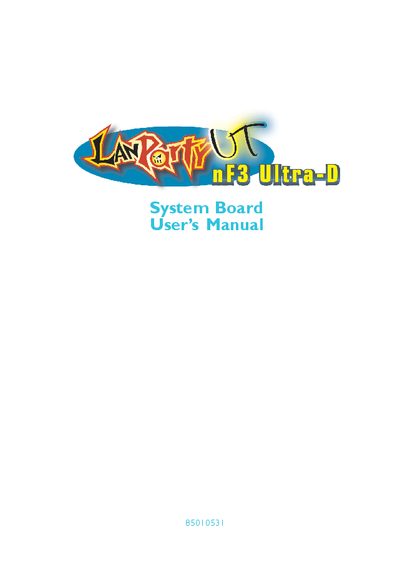

This document is a user manual for a system board, providing information and instructions on the product. The manual is protected by copyright and may not be reproduced or adapted without prior written permission from the copyright holders. The manufacturer does not provide any express or implied warranties of merchantability or fitness for a particular purpose regarding the contents or use of this manual, and the user assumes all risks associated with its use. Furthermore, the manufacturer reserves the right to revise the manual and make changes to its contents without notification. The product names or trademarks mentioned in the manual are for identification purposes only.
This manual covers safety precautions, FCC compliance, and general handling of the UT nF3 Ultra‑D system board. It includes warnings about correct AC input voltage, battery replacement, and the need to unplug the power cord before opening the chassis.
The document details the board’s layout, supported CPUs, memory types, I/O ports, BIOS features, and driver utilities. Appendices list system error messages and a troubleshooting checklist for common issues such as boot problems, peripheral configuration, and hardware installation.
| CPU Socket | Socket 939 |
|---|---|
| HyperTransport Interface | 2000MT/s |
| Chipset | nVIDIA® nForce Ultra |
| DIMM Slots | Four 84‑pin DDR SDRAM sockets |
| Maximum System Memory | 4 GB |
| Supported DDR Types | PC2100 (DDR266), PC2700 (DDR333), PC3200 (DDR400) |
| Power Management | ACPI specification and OS‑directed power management |
| Wake‑On‑LAN | Supported |
| Audio Codec | Realtek 6‑channel |
| Gigabit Ethernet | Gigabit PHY |
| Serial ATA Interfaces | Four ports, up to 1.5 Gbps |
| AGP Support | AGP 8x up to 2132 MB/s |
Insert the CD into a CD‑ROM drive, let the autorun screen appear, click the “TOOLS” icon and then select “Manual”.
Unplug the power cord before removing the system chassis cover for installation or servicing.
Try reorienting or relocating the receiving antenna, increase the separation between the equipment and the receiver, or connect the equipment to a different circuit. If the problem persists, consult a dealer or a radio‑TV technician.
Set the bootable (first) hard drive as Master and the second as Slave, and make sure the master drive has an active/bootable partition.
