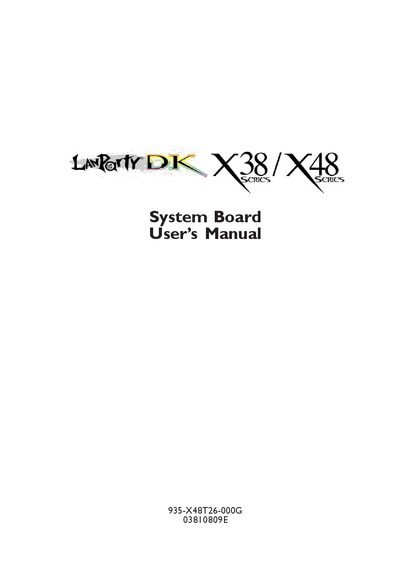

This manual introduces the use of the 935-X48T26-000G system board
This manual covers safety precautions such as electro‑static discharge protection, proper handling, and warranty limits. It lists the package contents, required components, and detailed board layout, including connectors, slots, and LEDs.
Technical information includes supported CPUs, chipset details, memory specifications, storage options, RAID configurations, and networking features. Installation steps for Windows, RAID driver setup, and BIOS configuration are also provided.
| CPU socket | LGA 775 |
|---|---|
| Supported CPUs | Intel Core2 Quad and Core2 Duo |
| Chipset | Intel X48 Express (X48 series) / Intel X38 Express (X38 series) |
| Memory slots | Four 240‑pin DDR2 DIMM sockets |
| Maximum memory | 8 GB |
| Memory speed | DDR2 667/800 MHz |
| SATA ports | Supports up to 6 SATA devices |
| SATA speed | 3 Gb/s |
| LAN controller | Marvell 88E8053 Gigabit Ethernet |
| Audio codec | Realtek ALC885 HD audio CODEC |
Use an antistatic wrist strap, keep the board in its anti‑static bag until installation, work on a static‑free surface, and avoid touching component contacts.
It uses an LGA 775 socket and supports Intel Core2 Quad and Core2 Duo processors.
Up to 8 GB of system memory can be installed.
