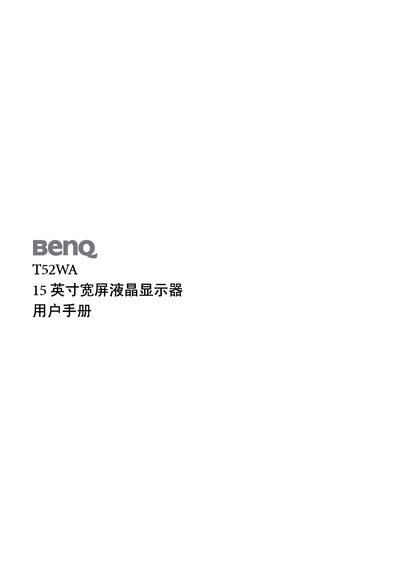

BenQ T52WA 15-inch Widescreen LCD User Manual

The user manual for T52WA 15-inch widescreen LCD monitor provides instructions on packaging contents, installation steps, connecting the monitor to a PC, and adjusting the monitor.

Brand: BenQ
Category: Monitor
Document type: User Manual
Language: English
Pages: 8
File format: PDF
File size: 204 KB
Published: 22 March, 2012
Updated: 29 September, 2023
MD5 checksum: 8460A0C609886584DD7E3B6E39E74D12
PDF: BenQ T52WA 15-inch Widescreen LCD User Manual PDF

About this manual

This manual explains how to install and operate the BenQ T52WA widescreen LCD monitor. It covers connection methods, on‑screen‑display (OSD) adjustments, and safety information.

Key specifications such as input voltage, power consumption, refresh rate, pixel‑clock range, and connector type are listed, helping users verify compatibility and optimal settings.

What's inside

Installation
OSD Settings
Pixel Clock
Contrast Adjustment
Power Consumption
Input Voltage
Refresh Rate
Connector Type

Specifications

Input Voltage	100‑240 V AC, 50 Hz/60 Hz
Refresh Rate	59‑75 Hz
Pixel Clock Range	31‑64 kHz
Connector	D‑sub 15‑pin

Frequently asked questions

What is the required input voltage for the monitor?

The monitor operates from an AC input of 100‑240 V at either 50 Hz or 60 Hz.

What refresh rate does the T52WA support?

The monitor supports a refresh rate between 59 Hz and 75 Hz.

What type of video connector does the monitor have?

It uses a 15‑pin D‑sub connector for video input.
