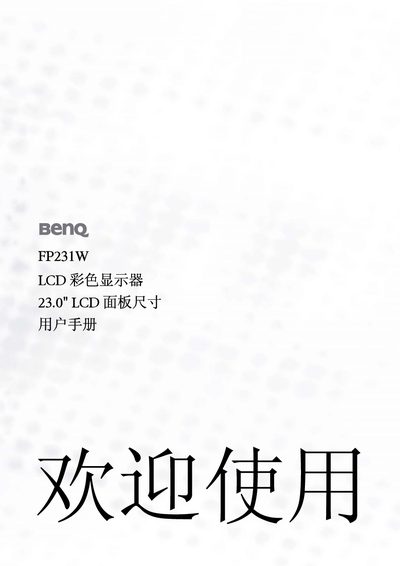

This document is the user manual for BenQ FP231W LCD color monitor, which provides information on installation, adjustment, and maintenance of the monitor.
This manual provides safety guidelines, installation steps, and adjustment instructions for the BenQ FP231W 23.0" LCD color display. It covers power connection, mounting, cable selection, and basic operation of the monitor.
The document also includes troubleshooting tips, a FAQ section, and detailed technical specifications such as screen size, resolution, contrast ratio, brightness, response time, power consumption, and dimensions. This manual is written in Chinese.
| Screen size | 23.0" (58.42 cm) |
|---|---|
| Maximum resolution | 1920×1200 |
| Contrast ratio (typical) | 500:1 |
| Contrast ratio (minimum) | 350:1 |
| Brightness (typical) | 250 cd/m² |
| Brightness (minimum) | 200 cd/m² |
| Response time (typical) | 16 ms |
| Viewing angle (typical) | 176°/176° (CR=10) |
| Maximum power consumption | 120 W |
| DC power supply voltage | 24 V |
| Operating voltage | 90‑264 V AC, 47‑63 Hz |
| Dimensions (W×H×D) | 465.5 × 534.8 × 248.5 mm |
No, you should not attempt self‑repair; contact qualified service personnel.
Use a non‑abrasive cloth without liquids; avoid any cleaning agents.
