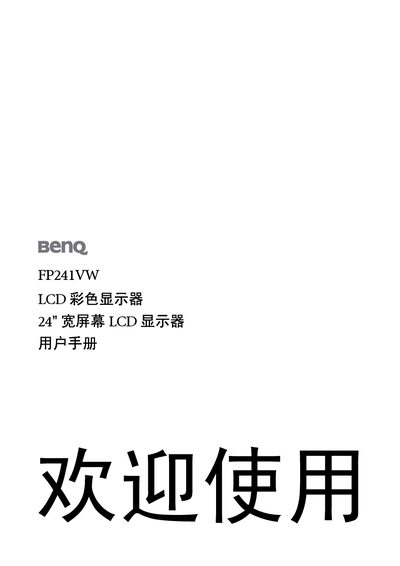

This is a user manual for BenQ FP241VW LCD monitor, introducing the features and usage of the monitor.
This manual covers safety instructions, unpacking, and basic setup of the BenQ FP241VW 24‑inch LCD monitor. It explains how to connect power, video inputs, and USB, how to adjust the monitor angle, remove the stand, and install a VESA wall‑mount bracket. Detailed sections guide users through installing the monitor on new or existing computers, adjusting resolution and refresh rate on Windows, and using the OSD menu for image optimization.
The specifications section lists the panel type, native resolution (1920 × 1200), contrast ratio, brightness, response times, viewing angles, power consumption, and supported input connectors. The FAQ and troubleshooting chapters address common questions such as cleaning, power usage, and PerfectMotion technology. This manual is written in Chinese.
| Resolution | 1920 x 1200 |
|---|---|
| Panel Type | Active TFT |
| Contrast Ratio | Typical 1000:1 (Min 700:1) |
| Brightness | Typical 500 cd/m² (Min 400 cd/m²) |
| Response Time | Typical 16 ms, Max 20 ms |
| Power Consumption | Max 95 W (no USB), Standby <2 W |
| VESA Mounting | 100 mm standard pattern |
Unplug the monitor, then wipe the LCD surface with a non‑abrasive cloth; avoid any liquids, wetting agents, or glass cleaners.
The monitor uses up to 95 W (without USB ports) and less than 2 W in standby mode.
In Windows, open the display settings and select the desired resolution, such as the native 1920 × 1200.
The back of the monitor has 100 mm VESA mounting holes for attaching a wall‑mount bracket.
