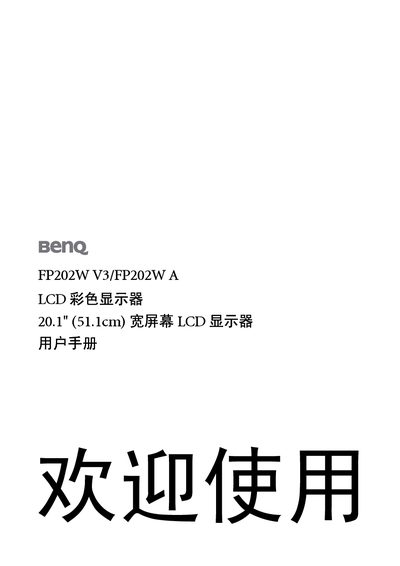

This manual introduces the basic use of BenQ FP202W V3/FP202W A LCD color monitor, including how to install the monitor hardware, how to connect the monitor to the computer, how to adjust the screen resolution and refresh rate, how to optimize the display image and other contents.
This manual covers safety precautions, cleaning, and installation steps for the BenQ FP202W V3/FP202W A 20.1" LCD monitor, including power connection, D‑Sub/DVI‑D inputs, and hardware mounting. It also explains how to adjust screen resolution, refresh rate, and image settings using the on‑screen display and hot‑key functions.
Additional sections describe troubleshooting common issues, FAQ guidance, and detailed specifications such as display size, contrast, brightness, response time, power consumption, and environmental limits. This manual is written in Chinese.
| Display Size | 20.1" (51.1 cm) |
|---|---|
| Resolution | 1680 x 1050 @ 60Hz |
| Typical Contrast Ratio | 1000:1 |
| Minimum Contrast Ratio | 800:1 |
| Typical Brightness | 300 cd/m² |
| Typical Response Time | 5 ms (Ton+Toff) |
| Typical Viewing Angle | 160°/160° (CCR>10) |
| Maximum Power Consumption | <50 W |
| Standby Power Consumption | <1 W (120 V), <2 W (240 V) |
| Input Signal | RGB analog 0.7 Vpp / 75 Ω, TTL sync 15‑pin D‑sub |
| Dimensions (W×H×D) | 396.7 mm × 479.6 mm × 169.9 mm |
No, not all VGA cards support 1680×1050; check with the system manufacturer or use a card that does.
Unplug the monitor and clean the LCD surface with a non‑abrasive cloth; avoid liquids, wetting agents, or glass cleaners.
The monitor’s maximum power consumption is less than 50 W.
