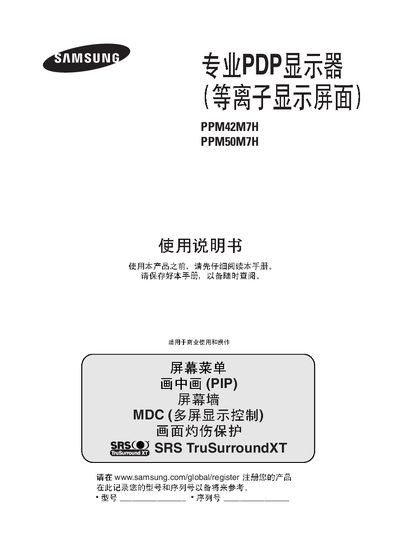

Samsung PPM42M7H / PPM50M7H PDP Display User Manual

PDP PPM42M7H PPM50M7H is a flat-panel TV produced by Samsung. The product has a 2000:1 contrast ratio and a 1,230,000:1 dynamic contrast ratio, supports 1080p high-definition resolution, and is equipped with TruSurroundXT surround sound technology.

Brand: Samsung
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 5.1 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: BA04EE66FC7A6824FCC461867D9A2F63
PDF: Samsung PPM42M7H / PPM50M7H PDP Display User Manual PDF

About this manual

The Samsung PPM42M7H and PPM50M7H PDP displays feature Picture‑in‑Picture (PIP), Multi‑Display Control (MDC) and SRS TruSurround XT sound processing. The manual explains how to enable these functions and how to navigate the on‑screen menu.

Detailed connection diagrams show the locations of power, external speaker, DVI/PC audio, component, AV, S‑Video and RS‑232C interfaces. Wiring, remote‑control operation, and troubleshooting steps are also covered.

What's inside

Picture‑in‑Picture (PIP)
Multi‑Display Control (MDC)
SRS TruSurround XT
Power and External Speaker Connections
Input Connections (DVI, Component, AV, S‑Video)
RS‑232C Interface
Remote Control Functions

Specifications

Battery Type for Remote	AAA 1.5 V
DVI/PC Audio Input	Available
RS‑232C Connector (MDC)	RS‑232C – IN: PC PDP
