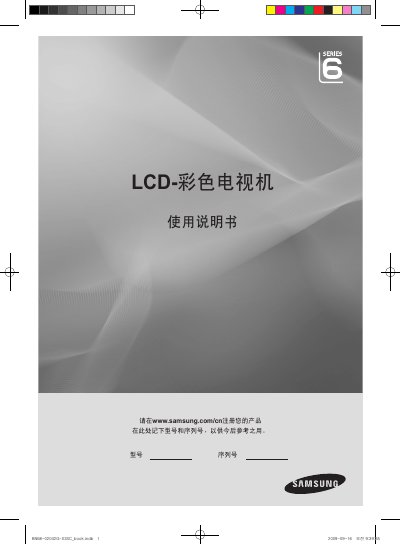

Instruction manual for Samsung LCD-color TV. This manual includes product features, usage methods, precautions, etc.
This manual covers safety precautions, proper installation, and wiring guidelines for the Samsung BN68-02042G-03SC LCD color television. It also explains how to use the remote control, navigate menus, and configure picture and sound settings.
Technical specifications, environmental compliance information, and a troubleshooting guide are included to help users maintain optimal performance and resolve common issues. This manual is written in Chinese.
| Screen size (diagonal) | 40" – 52" |
|---|---|
| Maximum resolution | 1920 × 1080 @ 60 Hz |
| Maximum audio output | 10 W × 2 (40/46‑inch) / 15 W × 2 (52‑inch) |
| Dimensions (W × D × H) without stand | 998 mm × 79.3 mm × 638 mm (40‑inch) etc. |
| Weight with stand | 23.3 kg – 37.8 kg |
| Brightness | ≥ 350 cd/m² |
| Contrast ratio | ≥ 150:1 |
| Viewing angle | Horizontal ≥ 85°, Vertical ≥ 65° |
The remote control works up to about 23 feet (≈ 7 meters) from the TV.
Open the back cover of the remote, insert two AAA batteries with the correct polarity, and close the cover again.
Check the TV’s supported resolution and adjust the external device’s output resolution accordingly.
