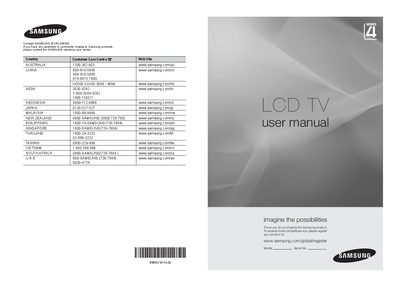

This document is the user manual for the Samsung LCD TV. It introduces the basic operating methods, function introduction, maintenance and maintenance of the TV.
This manual guides you through connecting and preparing your Samsung LCD TV, including installing the stand or wall‑mount kit, using the control and connection panels, and operating the remote control. It also covers channel setup, picture and sound adjustments, time settings, and troubleshooting tips.
Technical specifications such as screen size, resolution, dimensions, weight, and environmental limits are listed, along with safety precautions for displaying still images and using accessories like the Kensington lock.
| Screen Size (Diagonal) | 22 inch |
|---|---|
| PC Resolution | 1360 x 768 @ 60 Hz |
| Dimensions (WxDxH) with stand | 572 x 179 x 433 mm |
| Weight with stand | 6 kg |
| Operating Temperature | 10 °C to 40 °C |
| Operating Humidity | 10 % to 80 % (non‑condensing) |
| Storage Temperature | -20 °C to 45 °C |
| Storage Humidity | 5 % to 95 % (non‑condensing) |
Do not display a still image on the LCD panel for more than 2 hours to avoid image retention.
The model name is LA22A480.
The TV with the stand measures 572 mm × 179 mm × 433 mm (W × D × H).
