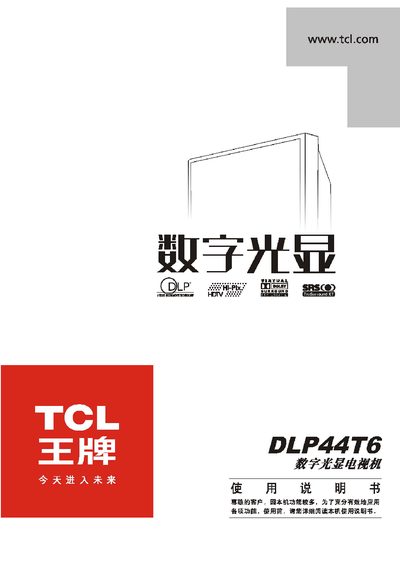

This manual guides TCL DLP44T6 digital light processing televisions through safe installation, basic operation, and advanced settings. It includes detailed descriptions of the remote control, AV panels, and system menus.
The document also covers channel searching, automatic updates, lamp replacement, and fault checking, helping users maintain optimal picture and sound performance. This manual is written in Chinese.
| Screen diagonal | 112 cm |
|---|---|
| Aspect ratio modes | 8 modes |
| Resolution | 1280×720 |
| Audio output power | 2×15 W |
| Computer interface | Supports VGA/SVGA/XGA |
| HDTV interface | Supports 480p/576p/720p/1080i |
| AV video input | 75 Ω, 1.0 Vp‑p |
| AV audio input | 0.5 Vrms, 10 kΩ |
| Brightness signal level | 1.0 Vp‑p |
| Chrominance signal level | 0.7 Vp‑p |
| Operating temperature | 0–40 °C |
| Operating humidity | < 80 % |
| Operating voltage | 176–245 V, 50 Hz |
| Rated power consumption | 190 W |
| Dimensions (W×H×D) | 1054 mm × 882 mm × 390 mm |
| Weight | ≈ 30 kg |
The lamp can be replaced, but it must be done by a professional technician as indicated in the lamp‑replacement section.
Turn the TV on, ensure the antenna is connected, press the menu key, select “Search” → “Automatic Search”, confirm with OK and wait about 10 minutes until the screen shows “Automatic search completed”.
