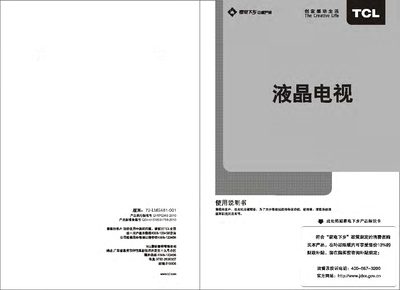

This manual explains how to safely install and operate a TCL television. It includes safety warnings, connection diagrams, remote‑control functions, basic operation steps, menu navigation, USB device usage, fault troubleshooting, and environmental information.
The document also lists the TV’s technical specifications such as supported video formats, input interfaces, operating temperature ranges, and power requirements, helping users understand the capabilities and limits of the product. This manual is written in Chinese.
| Operating Temperature | 5°C‑35°C |
|---|---|
| Operating Humidity | 20%‑80% |
| Storage Temperature | -15°C‑45°C |
| Storage Humidity | 10%‑90% |
| Working Voltage | 220 V, 50 Hz |
| Supported Video Resolutions | 480i/576i/p, 720p, 1080i/p |
| Video Input Interfaces | AV, YPbPr, VGA, HDMI, USB |
| Audio Output Interfaces | AV audio, HDMI audio |
| Supported Media Formats (USB) | Images: JPEG, BMP, PNG; Video: H.264, RMVB, XVID, MPEG‑2, MPEG‑4; Audio: MP3, WMA |
Press the “Input Select” icon in the menu or directly press the “Source” key on the remote to switch between TV, YPbPr, VGA, HDMI, and other inputs.
Hold the “Display” key for a few seconds; the TV will count down and then enter single‑listening mode, where only audio is output and the picture is turned off.
