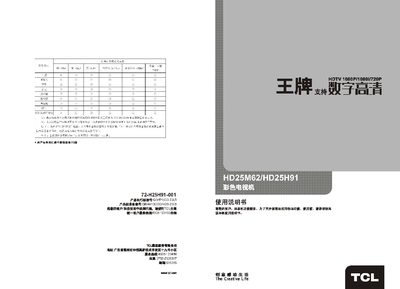

This manual explains how to safely install and operate the TCL HD25M62/HD25H91 color TV. It includes safety warnings, base installation and removal instructions, and detailed descriptions of the remote control and front‑panel functions.
The guide also lists the TV’s technical specifications, supported video/audio formats, power requirements, and provides troubleshooting steps for common picture or sound issues. This manual is written in Chinese.
| Reception band | 470 MHz (full‑channel cable TV) |
|---|---|
| Supported TV standards | PAL, NTSC 3.58, NTSC 4.43 |
| RF antenna input | 75 Ω unbalanced |
| AV1/AV2 video input level | 1.0 Vp‑p |
| Audio input level | 0.5 VRMS |
| S‑Video luminance signal | 1.0 Vp‑p (brightness), 0.7 Vp‑p (chrominance) |
| AV video output level | 1.0 Vp‑p |
| Rated voltage | 220 V ~ 50 Hz |
| Power consumption | 88 W |
| Screen diagonal | 59 cm |
