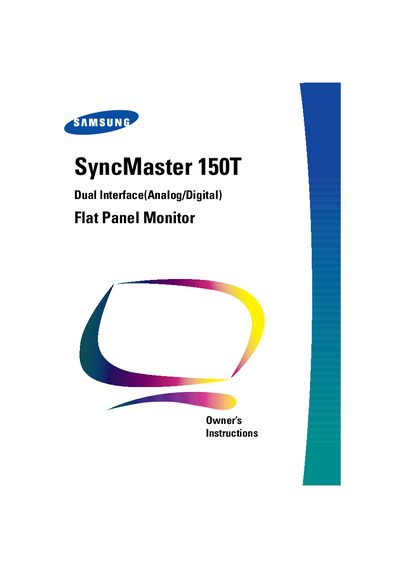

This document is the owner's instructions for SyncMaster 150T Dual Interface(Analog/Digital) Flat Panel Monitor. It introduces the features and usage methods of the product.
This manual provides safety guidelines, unpacking checks, and ergonomic recommendations for the SyncMaster 150T flat‑panel display. It explains how to position the monitor, secure it with a Kensington lock, and keep the unit free of dust and moisture.
Installation steps cover connecting analog (15‑pin D‑Sub) or digital (DVI‑D) video cables, attaching the power adapter, and performing auto‑adjustment. The guide also includes troubleshooting tips, specifications, pin assignments, and regulatory compliance information.
| Analog connector | 15‑pin D‑Sub |
|---|---|
| Digital connector | DVI‑D |
| Power cord type | Detachable IEC320 style |
Place the monitor so the top of the screen is slightly below your eye level and tilt it to a comfortable viewing angle.
Turn off the computer, then connect the 15‑pin D‑Sub video cable to the monitor’s back connector and to the computer’s video port.
No. The monitor has no user‑serviceable parts; only a qualified technician should open it.
Run the Auto Adjustment procedure described on page 12, and verify that the video driver is installed correctly.
