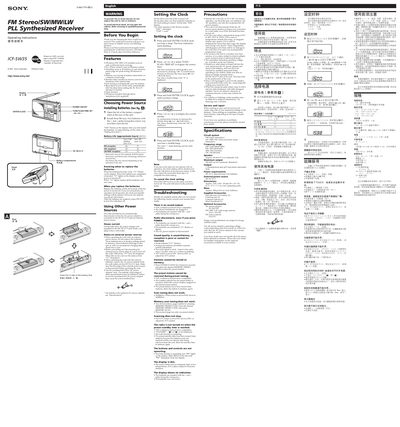

This is an operating instruction manual for an FM stereo/SW/MW/LW PLL synthesized receiver. The receiver features FM stereo and worldwide band coverage for SW/MW/LW frequencies. It also includes a PLL synthesizer system, preset function, scan tuning function, standby timer function, sleep timer function, and clock function.
This manual covers the basic operation of the Sony ICF‑SW35 world‑band receiver, including power source selection, battery installation, clock setting, and band tuning. It also details the radio’s features such as PLL synthesis, memory presets, standby timer, and sleep timer.
Additional sections provide troubleshooting guidance, safety precautions, and a full specification table with frequency ranges, speaker size, power requirements, dimensions, and accessories.
| FM frequency range | 76.00‑108.00 MHz |
|---|---|
| SW frequency range | 2250‑26100 kHz |
| MW frequency range | 530‑1710 kHz |
| LW frequency range | 150‑285 kHz |
| Speaker diameter | ≈66 mm (2.6 in.) |
| Maximum output power | 240 mW (10 % THD) |
| Power requirements | DC 4.5 V, three AA (R6) batteries |
| Dimensions | 168 × 106 × 35 mm (W × H × D) |
| Mass | ≈405 g (14.3 oz.) |
Press and hold ENTER/CLOCK until a beep sounds, then use the – and + buttons under TUNE/SCAN/TIME SET to adjust the hour and minute, confirming each step with another beep.
Open the battery compartment, locate the MW channel‑step switch, and set it to 10 kHz for North/South America or 9 kHz for other regions, then reinstall the batteries.
