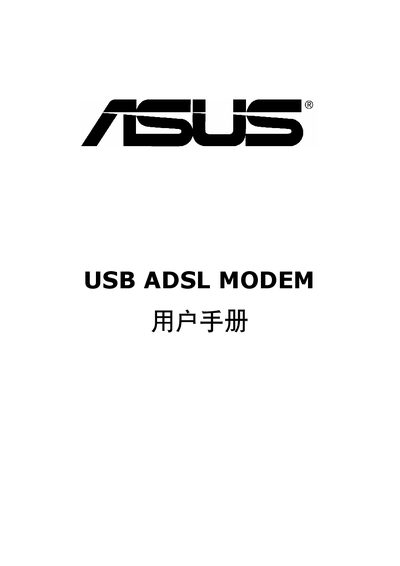

Asus USB ADSL Modem User Manual, which introduces the hardware installation, software installation, configuration communication mode, control panel application program, change ISP service form and remove software of ADSL modem.
The manual introduces the USB ADSL modem, explaining its purpose and basic operation. It covers the overall structure of the device, the supported ADSL standards (ANSI T1.413, G.DMT, G.lite, etc.) and the compatible Windows operating systems.
Detailed chapters guide the user through hardware installation, software setup, communication mode configuration, control‑panel program usage, ISP settings, TCP/IP adjustments, and PPPoE configuration. Appendices provide step‑by‑step instructions for modifying TCP/IP parameters and using PPPoE over Ethernet. This manual is written in Japanese.
| Maximum downstream speed | 8 Mbps |
|---|---|
| Maximum upstream speed | 1024 Kbps |
| Interface | RJ‑11 |
| Supported ADSL standards | ANSI T1.413, G.DMT, G.lite, Annex A/B/C |
Connect the modem to a USB port, then follow the installation steps described in Chapter 2, which cover both hardware and software installation.
Yes, Chapter 5 explains how to modify ISP service parameters and remove existing configuration files.
Appendix A provides step‑by‑step instructions for modifying TCP/IP attributes.
