HP Compaq Presario V2600 Laptop Product Leaflet

The Compaq Presario V2600 notebook PC is powered by an AMD TurionTM(Turion) 64 processor ML-34 (1.8GHz), a 14.0-inch WXGA BrightView super bright screen, an ATI Radeon XPRESSTM 200M graphics card, 512MB of memory, a 60GB hard drive, a DVD/CD-RW combo optical drive, a high-speed 56K modem, an integrated 10/100 LAN, an 802.11b/g wireless network card, Type I/II PC card slots, an integrated six-in-one digital storage reader slot (xD, SD, MMC, Memory Stick, Memory Stick PRO and Smart Media), VGA, USB 2.0 (3), IEEE1394, RJ-11, RJ-45, headphones, an external microphone jack, an AC adapter, S-video output, and an expansion port for the HP xb2000 notebook PC expansion base, six lithium-ion batteries, and a 65 watt 3-wire AC adapter.

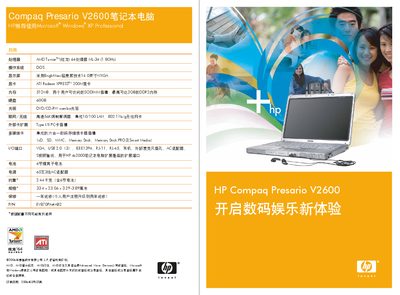

HP Compaq Presario V2600 Laptop Product Leaflet - cover page
Brand
HP
Category
Laptops
Document type
Product Leaflet
Language
Chinese
Pages
2
File format
PDF
File size
441 KB
Published
22 March, 2012
Updated
30 September, 2023
MD5 checksum
9BFBE85735522E40CAB1A9722933D24A

About this manual

The HP Compaq Presario V2600 is a 14‑inch notebook featuring an AMD Turion 64 ML‑34 processor (1.8 GHz), 512 MB of RAM (expandable to 2 GB DDR2) and a 60 GB hard drive. It includes a BrightView WXGA display, ATI Radeon XPRESS™ 200M graphics, DVD‑CD‑RW combo drive, 802.11b/g wireless, and a range of I/O ports.

Additional features include a 6‑cell lithium‑ion battery, 65 W AC adapter, six‑in‑one card reader supporting multiple media formats, and a one‑year repair warranty. The laptop measures 33.4 × 23.06 × 3.29‑3.89 cm and weighs approximately 2.44 kg with the battery installed. This manual is written in Chinese.

What's inside

  • Processor
  • Memory
  • Storage
  • Display
  • Graphics
  • Networking
  • Expansion Slots
  • Card Reader
  • I/O Ports
  • Battery and Power

Specifications

ProcessorAMD Turion 64 ML‑34 (1.8 GHz)
Display14.0‑inch WXGA BrightView
GraphicsATI Radeon XPRESS™ 200M
Memory512 MB installed, up to 2 GB DDR2
Hard Drive60 GB
Optical DriveDVD/CD‑RW combo
Wireless802.11b/g
LAN10/100 Ethernet
Modem56 K modem
Expansion SlotsType I/II PC Card
I/O PortsVGA, USB 2.0 (3), IEEE1394, RJ‑11, RJ‑45, headphone, mic, AC adapter, S‑Video
Battery6‑cell lithium‑ion
Power Adapter65 W AC adapter
Dimensions33.4 × 23.06 × 3.29‑3.89 cm
Weight≈2.44 kg (with battery)
WarrantyOne‑year repair service

Frequently asked questions

What processor does the HP Compaq Presario V2600 use?

It uses an AMD Turion 64 processor model ML‑34 running at 1.8 GHz.

How much memory can be installed in the V2600?

The notebook comes with 512 MB of RAM and supports up to 2 GB DDR2 via two SODIMM slots.

Does the laptop have built‑in wireless connectivity?

Yes, it includes an 802.11b/g wireless network card.

What are the physical dimensions and weight of the Presario V2600?

It measures 33.4 × 23.06 × 3.29‑3.89 cm and weighs about 2.44 kg with the battery installed.
