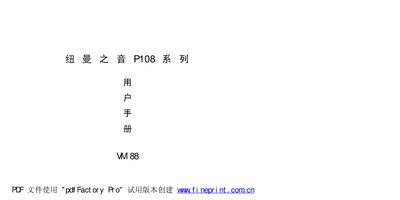

This is the user manual of Newman P108 series MP3 player, which supports MP3, WMA, etc. It features 65,536-color OLED screen, stylish and individual touch buttons, exquisite appearance design and comfortable hand feeling. It supports BMP format picture browsing, various recording encoding methods, various loop modes and various sound effects modes. It also features intuitive animation menu and text display.
The manual begins with a foreword thanking the user for choosing the MP3 player and outlines the importance of reading the documentation before use. It includes safety notices, warranty limits, and contact information for support.
Subsequent sections describe button functions, touch‑type controls, charging methods, battery management, and detailed technical specifications such as supported audio formats, memory options, FM radio range, and playback time. A FAQ at the end addresses common issues like short standby time and failure to power on after prolonged storage. This manual is written in Chinese.
| Supported music formats | MP3, WAV, MTV |
|---|---|
| Bitrate range | 56 kbps – 320 kbps |
| Screen colors | 65,000 colors |
| Internal memory options | 128 MB, 256 MB, 512 MB, 1 GB |
| FM frequency range | 87.5 MHz – 108 MHz |
| Signal‑to‑noise ratio | 45 dB |
| Recording format | WV |
| Recording time | ≈ 8 hours |
| Headphone output power | 10 mW |
| Output frequency range | 20 Hz – 20 kHz |
| Menu languages | Simplified Chinese, English, Traditional Chinese |
| Battery type and playback time | Built‑in lithium, ≈ 8 hours continuous playback |
| Operating temperature | 0 °C – 40 °C |
Battery life varies with temperature and usage; high volume, backlight, recording, sound effects, or frequent operations reduce standby time.
When the battery is deeply discharged, it is protected and will not power on; connecting the player to a dedicated charger or a computer USB port reactivates the battery.
