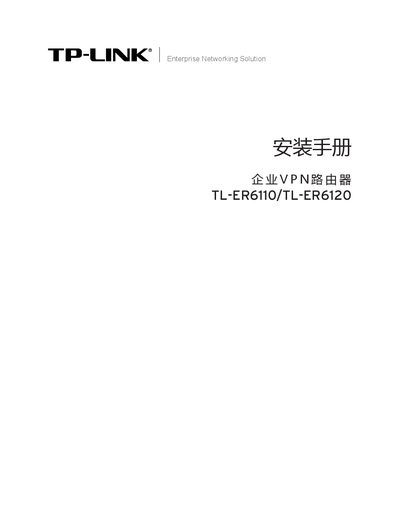

This manual introduces the hardware characteristics, installation methods and precautions of TP-LINK TL-ER6110/TL-ER6120 enterprise VPN routers.
This guide provides step‑by‑step instructions for installing the TP‑Link TL‑ER6110/TL‑ER6120 enterprise VPN routers. It is intended for network engineers and administrators who need to set up the devices in a rack or on a desk, covering safety precautions, required tools, and environmental requirements.
The manual details hardware connections, including WAN, LAN, DMZ, and console ports, and explains how to power on the router, perform the initial hardware initialization, and access the web management interface. Appendices include common fault troubleshooting and a full technical specification table. This manual is written in Chinese.
| Supported Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, 802.1x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, L2TP, PPTP, IPSec |
|---|---|
| Power Input | 100‑240V~ 50/60Hz |
| Working Temperature | 0℃~40℃ |
| Storage Temperature | -40℃~70℃ |
| Working Humidity | 10%~90% RH |
| Dimensions (L×W×H) | 440 mm × 220 mm × 44 mm |
The router’s default management address is http://192.168.1.1.
It requires a power input of 100‑240 V~ at 50/60 Hz.
The TL‑ER6120 provides 1 to 4 WAN ports.
