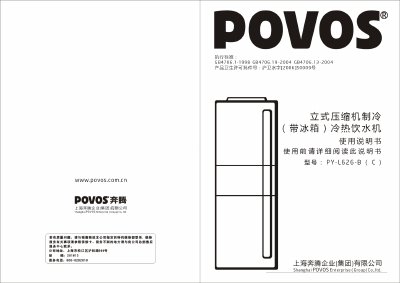

This manual explains the control panel layout, button functions, and step‑by‑step usage of the POVOS PY‑L626‑B hot and cold drinking water machine. It includes details on heating, cooling, water preservation, and cabinet disinfection functions, as well as how to set temperatures, timers, and operating modes.
Safety precautions, cleaning and maintenance procedures, troubleshooting tips, and warranty information are also covered, ensuring safe and reliable operation of the appliance in indoor environments. This manual is written in Chinese.
| Rated voltage / frequency | 220V / 50Hz |
|---|---|
| Rated power / current | 550W / 2.5A |
| Heating / cooling power | 420W / 100W |
| Water preservation power | 5W |
| Cabinet disinfection power | 5W |
| Refrigerator temperature range | 5‑10°C |
| Rated hot‑water capacity | 90°C, 5 L/h |
| Rated cooling‑water capacity | 10°C, 2 L/h |
| Power consumption (24 h) | 1.80 kWh |
| Weight | 36 kg (standard) / 41 kg (with cabinet) |
| Dimensions (W×D×H) | 540 mm × 540 mm × 1278 mm |
Press the power button to enter standby, then press the “加热” (heat) button; the machine will heat until the set temperature is reached.
Press and hold the “加热” button for 1 second; the heating function will stop.
E1 means dry‑burn protection; the hot‑water temperature display shows “E1” and the buzzer sounds ten intermittent beeps, stopping all functions.
