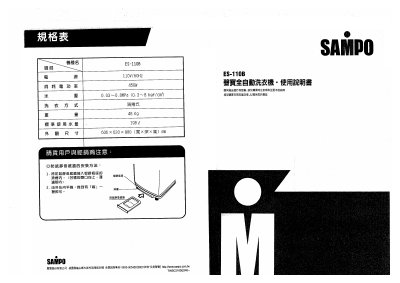

This manual explains how to install the Sampo ES-110B washing machine, including connecting the water supply and drain pipe, setting up the power source, and securing the unit on a level floor. Detailed instructions cover the control panel functions, various washing programs, and how to select water levels and detergent amounts.
Safety precautions, regular maintenance, and a troubleshooting guide are included to help users resolve common issues such as leaks, abnormal noises, or error messages. The document also lists the machine’s technical specifications for reference. This manual is written in Japanese.
| Power Consumption | 110 W / 60 Hz |
|---|---|
| Weight | 48 kg |
| Dimensions (W × D × H) | 606 mm × 620 mm × 980 mm |
| Water Pressure Range | 0.03 – 0.8 MPa |
| Standard Water Consumption per Cycle | 198 L |
Attach the water supply hose to the water inlet, ensure the hose is oriented downward, tighten the connection, and then open the tap to check for leaks.
Place the machine on a flat surface, remove the existing drain pipe, attach the new pipe ensuring it is not too long (max 1.5 m) and not too short, then secure it and test drainage.
Press the power button to turn off the machine, wait a few seconds, then press the power button again to restart. If the problem persists, consult the fault diagnosis section.
