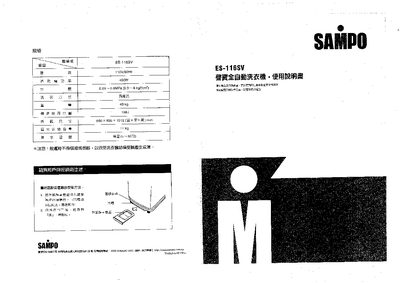

This manual covers all steps needed to install the Sampo ES-116SV washing machine, including proper placement, leveling, water‑inlet and drain‑pipe connections, and electrical grounding. Detailed safety precautions are listed to prevent damage or injury during setup and use.
Operating instructions describe each wash program, water‑flow settings, detergent use, and how to add fabric softener or bleach. Maintenance sections explain regular cleaning of the water inlet, drum, and filter, as well as troubleshooting common problems such as drainage or spin failures. This manual is written in Japanese.
| Voltage | 110 V / 60 Hz |
|---|---|
| Power consumption | 450 W |
| Water pressure | 0.03–0.8 MPa |
| Dimensions (W×D×H) | 660 mm × 690 mm × 1010 mm |
Turn the leveling feet clockwise to raise the machine and counter‑clockwise to lower it until the unit sits firmly on a flat surface.
Check that the drain hose is correctly positioned and not kinked, then verify the drain pump filter is clean and free of debris.
Do not pull or push the unit; instead, lift it carefully and place it on a flat, sturdy surface to avoid damage.
Clean the inlet filter regularly, especially after long periods of non‑use, to prevent reduced water flow and possible faults.
