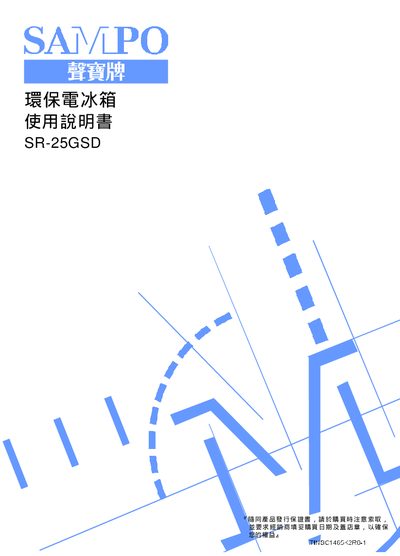

provide SR-25GSD refrigerator user manual, including product functions, usage methods, disassembly methods, maintenance methods, etc.
This manual describes the parts and functions of the SR-25GSD environmentally‑friendly refrigerator, including the freezer, fresh‑food compartment, ice‑box, door boxes, and adjustable feet. It explains how to install and remove accessories such as the beer rack, door boxes, and the platinum deodorizing material.
Safety guidelines cover proper grounding, avoiding high‑temperature components, preventing water damage, and handling hazardous substances. The guide also details temperature adjustment, ventilation requirements, regular cleaning of the drainage system, and troubleshooting common issues like excess frost, water leakage, and abnormal noises. This manual is written in Chinese.
| Rated Voltage | 110 V |
|---|---|
| Rated Frequency | 60 Hz |
| Motor Rated Power | 165 W |
| Heater Rated Power | 140 W |
| Total Effective Volume | 580 L |
| Compartment Volumes (Freezer/Refrigerator/Vegetable) | 153/302/125 L |
| Monthly Power Consumption | 72 kWh |
| Energy Factor | 9.71 |
| Product Weight | 95 kg |
Clean the drainage pipe regularly, about every six months to one year, to prevent blockage from dirt or mold.
Glass bottles of beer or soda should never be placed in the freezer because they can crack or explode when the water inside expands.
