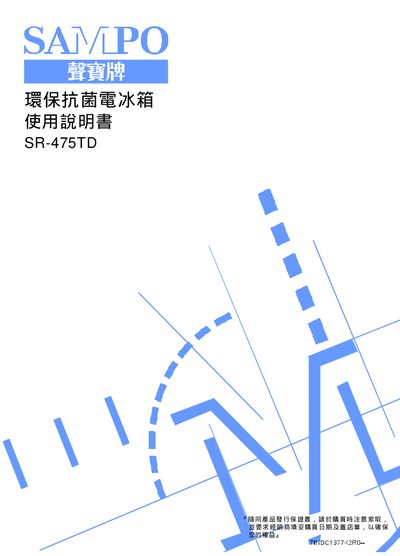

This document is a user manual for the SR-475TD eco-friendly antibacterial refrigerator, which provides information on the various components and functions of the product, as well as instructions for use and precautions.
This manual describes the parts and functions of the SR-475TD refrigerator, including the freezer, fresh‑food compartment, rapid‑freeze chamber, and accessories. It explains how to set the temperature, adjust the unit on a level surface, and maintain proper ventilation.
Safety precautions, cleaning procedures, troubleshooting steps, and detailed technical specifications are also covered. The document includes guidance on drain‑pipe cleaning, emergency handling, and recommended service contacts. This manual is written in Chinese.
| Rated Voltage (V) | 110 |
|---|---|
| Rated Frequency (Hz) | 60 |
| Motor Power (W) | 165 |
| Heater Power (W) | 140 |
| Total Capacity (L) | 580 |
| Freezer Capacity (L) | 153 |
| Refrigerator Capacity (L) | 302 |
| Cooler Capacity (L) | 125 |
| Monthly Energy Consumption (kWh) | 72 |
| Energy Efficiency (L/kWh·month) | 9.71 |
| Refrigerant | R-134a |
| Refrigerant Charge (g) | 145 |
| Product Weight (kg) | 95 |
The drain pipe should be cleaned about once a month to prevent buildup and maintain proper drainage.
Stop the unit immediately and disconnect the power supply, then contact an authorized service center.
Do not touch the rear high‑temperature components, as they can reach temperatures above 80 °C.
