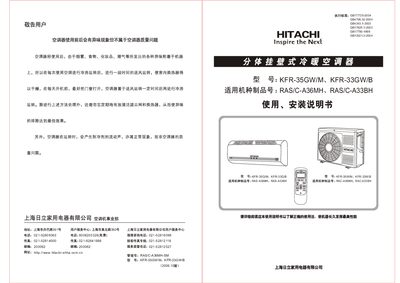

This is a user manual for Hitachi RAS/C-A36MH-SM KFR-35GW/M KFR-33GW/B. It mainly introduces the product's features and characteristics, installation and use methods, maintenance and maintenance.
This manual provides detailed instructions for installing, operating, and maintaining the Hitachi KFR-35GW/M split‑type air conditioner. It includes safety warnings, wiring diagrams, and step‑by‑step procedures for connecting indoor and outdoor units, setting timers, and adjusting airflow.
The guide also describes routine cleaning of the filter, nanometer‑titanium purification net, and other components, as well as troubleshooting tips for common issues such as abnormal noises or reduced cooling performance. This manual is written in Chinese.
| Model | KFR-35GW/M, KFR-33GW/VB |
|---|---|
| Rated Input Power (Cooling) | 1130 W |
| Rated Input Power (Heating) | 1310 W |
| Cooling Capacity | 3550 W |
| Heating Capacity | 4200 W |
| Dehumidification Rate | 1.5 kg/h |
| Indoor Noise Level (Low Fan) | 39 dB(A) |
| Outdoor Noise Level | 50 dB(A) |
Press the timer button on the indoor panel to set the desired start or stop time; the timer indicator will light while the timer is active.
