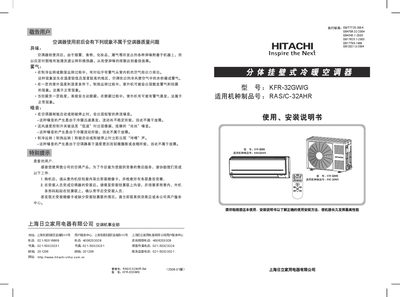

This document is the product manual for a RAS/C-32AHR-SM KFR-32GW/G air conditioner produced by Hitachi Home Appliances Co., Ltd. It mainly introduces the product's appearance size, electrical wiring diagram, performance parameters, etc.
This manual provides complete instructions for the safe use, installation, and maintenance of the Hitachi KFR-32GW/G split‑type air‑conditioning unit. It covers operating modes, control panel functions, remote‑control operation, and detailed installation steps for both indoor and outdoor units.
Key sections include product specifications, wiring diagrams, airflow adjustment, cleaning procedures, and troubleshooting tips to ensure optimal performance and longevity of the system. This manual is written in Chinese.
| 额定电压 | 220 V |
|---|---|
| 制冷量 | 3250 W |
| 制热量 | 3700 W |
| 除湿量 | 1.2 kg/h |
| 循环风量 | 590 m³/h |
| 室内噪音 | 37 dB(A) |
| 室外噪音 | 50 dB(A) |
| 制冷能效等级 | 5级 |
| 制热能效比 (COP) | 3.30 |
The dust filter should be cleaned regularly to remove accumulated dust and maintain airflow.
The short noise at startup is normal and caused by rapid refrigerant flow that has not yet stabilized.
