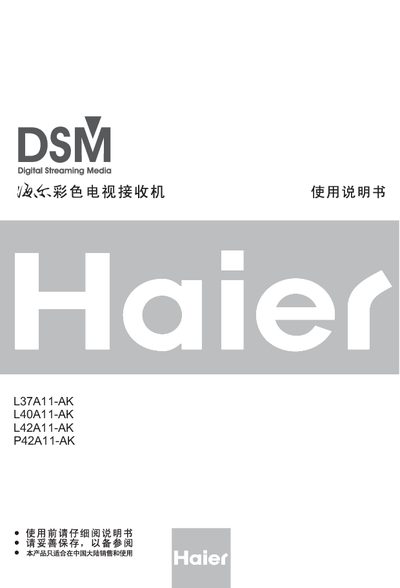

The document introduces the TV product series of Haier brand, including models L37A11-AK, L40A11-AK, L42A11-AK, and P42A11-AK. The document describes the features and characteristics of the TVs, as well as the specifications of each model.
This manual provides safety instructions, remote‑control preparation, panel and rear‑connector functions, and step‑by‑step guidance for operating Haier color televisions (models L37A11‑AK, L40A11‑AK, L42A11‑AK, P42A11‑AK). It includes detailed sections on connecting antennas, VCRs, DVD/HDMI devices, computers, external speakers, and using the streaming playback system.
Additional chapters cover basic TV operation, image and sound adjustments, time settings, function menus, lock settings, troubleshooting, and a list of supported video signal formats with recommended PC, DVI and HDMI input specifications. This manual is written in Chinese.
| Supported video format | HDTVASDTV (YPbPr/YCbCr) |
|---|---|
| 480i/480p refresh rate | 60 Hz |
| Recommended DVI input format | 1280×1024 @ 60 Hz |
Do not use rechargeable batteries such as Ni‑Cd; replace the batteries in pairs with new ones of the same type, and avoid mixing old and new or different battery chemistries.
The TV supports HDTVASDTV (YPbPr/YCbCr) formats, including 480i/480p at 60 Hz, 576i/576p at 50 Hz, 720p at 50/60 Hz, and 1080i/1080p at 50/60 Hz.
Read the manual carefully, keep the TV away from water, avoid placing open flames nearby, ensure the power plug’s grounding pin is connected, and keep the TV away from strong electromagnetic fields.
Use the appropriate input ports: AV1/AV2 for audio‑video, HDMI1/HDMI2 for digital video, VGA for computer video, and the antenna input for broadcast signals.
