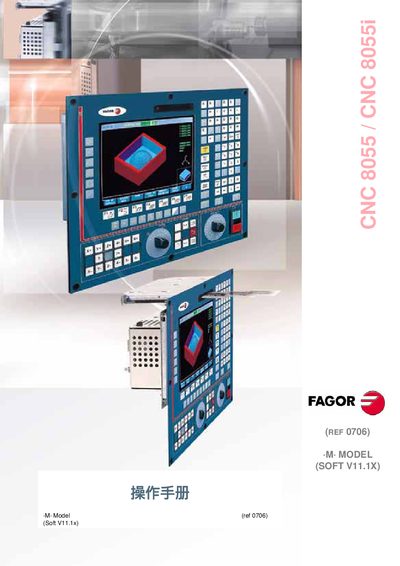

This manual introduces the operation methods of CNC 8055 / CNC 8055i (REF 0706) ·M· MODEL (SOFT V11.1X).
This manual covers the overall layout, operation modes, and safety guidelines for the FAGOR CNC 8055i controller. It includes detailed descriptions of the control panel, programming functions, and troubleshooting procedures.
Additional sections describe communication interfaces (RS‑232, CAN, SERCOS, Ethernet), I/O configuration, tool tables, and system parameters, helping users set up and maintain the machine efficiently. This manual is written in Japanese.
| Digital inputs | 16 |
|---|---|
| Digital outputs | 8 |
| Additional digital inputs | 40 |
| Additional digital outputs | 24 |
| RAM | 256 KB (expandable to 1 MB) |
| CPU turbo processing time | 9 ms (fast), 6 ms, 3 ms |
| RS‑232 interface | Available |
| SERCOS interface | Available |
The controller provides 16 digital inputs (and 8 digital outputs) as listed in the specifications.
With turbo mode the processing time per program segment is 9 ms (or 6 ms / 3 ms for faster settings).
