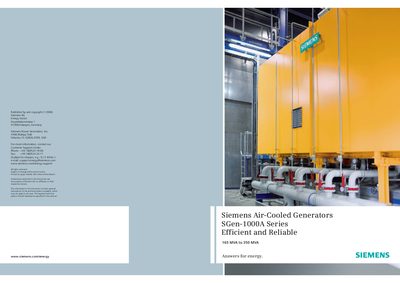

Siemens offers the SGen‑1000A series of air‑cooled, two‑pole generators for steam and gas turbines, covering ratings from 165 MVA to 350 MVA. The design builds on more than 100 years of experience and incorporates patents from the former Westinghouse Power Generation Business.
The generators feature modular rotors, multiple cooling options (air, OAC, TEWAC), IP55 outdoor‑ready enclosures, and rail‑transportable dimensions. Efficiency reaches up to 98.94 % at rated load, and the system uses a GVPI insulation system for high reliability.
| Model | SGen5-1000A |
|---|---|
| Apparent power | 165 MVA to 350 MVA |
| Efficiency | up to 98.94 % |
| Terminal voltage | 10.5 kV to 20 kV |
| Cooling type | Air, OAC, TEWAC |
| Design standard | IEC and ANSI |
| Insulation class | Class F |
| IP rating | IP55 |
| Transport suitability | Rail transport in most countries |
The SGen‑1000A series can achieve up to 98.94 % efficiency at rated load.
They are available with apparent power from 165 MVA up to 350 MVA (165 MVA to 310 MVA for 60 Hz).
Cooling options include air‑cooled, Open Air‑Cooled (OAC) and Totally Enclosed Water‑to‑Air‑Cooled (TEWAC).
Yes, the generator has an IP55 rating making it suitable for outdoor installation.
