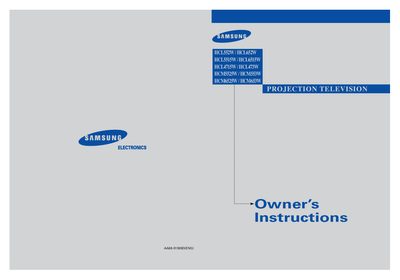

This manual introduces the operation methods of HCL552W/ HCL652W HCL5515W/ HCL6515W HCL4715W/ HCL473W HCM5525W/ HCM553W HCM6525W/ HCM653W projection televisions, including installation, use, and maintenance.
This manual begins with important safety information, warning about electric shock, proper grounding, and the need for qualified service personnel. It also covers handling, moving the unit on casters, and environmental precautions such as keeping the TV away from moisture, extreme temperatures, and magnetic fields.
The later sections describe how to install antennas, connect external devices, use the on‑screen menu, adjust picture and sound settings, and access special features like Picture‑in‑Picture and Dolby Surround. A troubleshooting chapter lists common problems and suggested solutions, and an appendix offers cleaning and maintenance advice for long‑term use.
| Voltage | AC 120V |
|---|---|
| Frequency of Operation | 60Hz |
| Power Consumption | 230 Watts |
| Dimensions (HCL552W) | 1345 x 629 x 1448 mm |
| Weight (HCL552W) | 91 Kg |
Do not open the cover, use a grounded or polarized outlet, and refer all servicing to qualified personnel.
Wipe the TV with a clean, dry cloth; never use water, cleaning fluids, wax, or chemicals, and keep ventilation openings clear.
