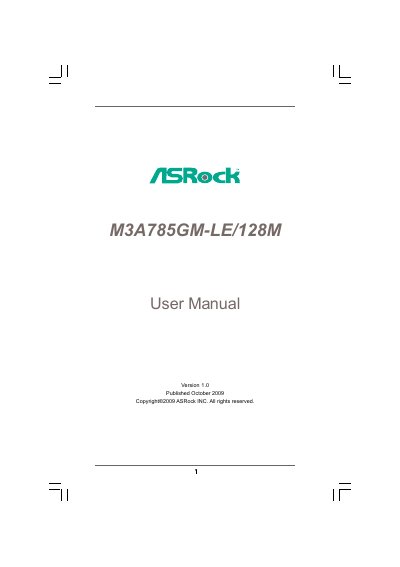

M3A785GM-LE/128M User Manual, introduces the features and characteristics of the product, usage instructions, etc.
This user manual introduces the ASRock M3A785GM-LE/128M motherboard, outlines the package contents, and guides you through hardware installation, including CPU, memory, and expansion cards. It also covers BIOS setup, overclocking features, and software support provided on the included support CD.
Detailed sections describe the motherboard layout, I/O panel, SATA and IDE connectors, dual‑monitor capabilities, and system requirements for HD video playback. Safety warnings, warranty information, and regulatory compliance notes are also included.
| Form Factor | Micro ATX (9.6" x 7.8") |
|---|---|
| CPU Socket | Socket AM3 |
| Chipset | AMD 785G Northbridge / AMD SB710 Southbridge |
| Memory Type | Dual‑Channel DDR3, up to 8 GB |
| Expansion Slots | 1 × PCI‑E x16, 1 × PCI‑E x1, 2 × PCI |
| Integrated Graphics | AMD Radeon HD 4200 |
| LAN | Gigabit Ethernet (Realtek RTL8111DL) |
| BIOS | 8 Mb AMI BIOS |
It supports Socket AM3 processors.
The board provides six Serial ATAII 3.0 Gb/s connectors.
Yes, it uses Dual Channel DDR3 Memory Technology.
The system includes an 8 Mb AMI BIOS.
