The transformer has the characteristics of non-distorted waveform, small size, light weight, high efficiency, convenient use, reliable and long-term operation. It can be widely used in industry (such as chemical industry, metallurgy, instruments and meters, mechanical manufacturing, light industry, etc.), scientific experiments, public utilities, household appliances, to achieve voltage regulation, temperature control, speed regulation and light control, power control, etc., is an ideal alternating current voltage regulation power supply.

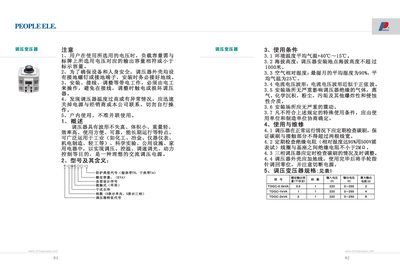

The manual describes the environmental requirements, installation limits and operating conditions for the TDGC/TSGC series regulator transformers. It includes guidance on temperature, altitude, humidity, voltage waveforms and the need for a clean, vibration‑free installation site.
Operational instructions cover regular inspection of carbon brushes, insulation resistance testing, grounding, and safe shutdown procedures. The document also provides the transformer specifications, wiring diagrams, physical dimensions and warranty details. This manual is written in Chinese.
| Ambient temperature range | +40 °C to -15 °C |
|---|---|
| Maximum altitude for installation | ≤ 1000 m |
| Minimum insulation resistance (coil‑to‑base) | ≥ 2 MΩ |
The regulator can be used in environments where the average temperature is between +40 °C and -15 °C.
Carbon brushes should be inspected regularly and the brush width must not exceed two wire widths.
The insulation resistance must be at least 2 MΩ, measured with a 500 V swing‑meter at 95 % relative humidity.
Yes, the regulator housing must be grounded via a grounding screw or terminal during installation.
