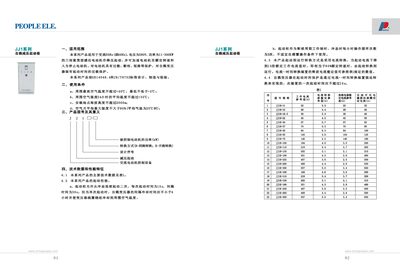

User manual for the JJ1 series reduced‑voltage start control cabinet covering specifications, installation, operation and ordering.
The JJ1 series reduced‑voltage start control cabinet is designed for three‑phase squirrel‑cage induction motors with power ratings from 11 kW to 300 kW. It operates on 380 V AC at 50 Hz or 60 Hz and provides soft‑starting, overload, phase‑loss and short‑circuit protection.
The manual details technical data, installation dimensions, wiring diagrams, operation procedures for both automatic and manual modes, and ordering information. Safety limits such as ambient temperature, humidity and altitude are also specified. This manual is written in Chinese.
| Power range | 11‑300 kW |
|---|---|
| Supply voltage | 380 V AC |
| Frequency | 50 Hz or 60 Hz |
| Motor type | Three‑phase squirrel‑cage induction motor |
| Maximum starting time | ≤15 s |
The initial starting time should not exceed 15 seconds.
It can perform three start cycles per hour in cold state.
The ambient temperature must be between –5 °C and +40 °C.
