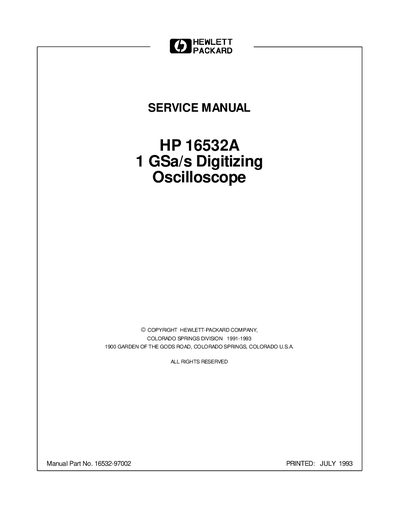

This is the service manual for the Hewlett-Packard HP 16532A 1 GSa/s Digitizing Oscilloscope
This service manual provides detailed information for the HP 16532A 1 GSa/s digitizing oscilloscope, including safety requirements, product description, and a list of supplied accessories. It also contains tables of specifications and operating characteristics, as well as recommended test equipment.
The document is organized into six main sections: General Information, Installation, Performance Tests, Calibration, Replaceable Parts, and Service. It guides technicians through inspection, setup, calibration procedures, part replacement, and troubleshooting, ensuring proper maintenance and reliable operation of the instrument.
| Sampling rate | 1 GSa/s |
|---|---|
| Bandwidth | 250 MHz |
| Samples per channel | 8000 |
Before switching on the instrument, the protective earth terminal must be connected to the protective conductor of the mains power cord, and the correct fuse must be installed.
