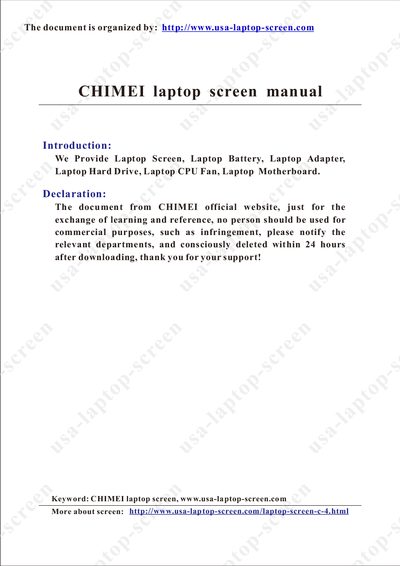

This document is the technical specification manual for CHIMEI laptop screen, mainly introducing the screen size, resolution, brightness and other parameters
This document provides the preliminary specifications for the CHIMEI N154C6-LO1 15.4" TFT LCD laptop screen. It includes detailed mechanical dimensions, electrical absolute maximum ratings, and optical performance data.
The sheet lists the module’s interface, power requirements, temperature limits, and handling precautions, serving as a reference for designers and integrators of notebook displays.
| Active Area | 331.560 x 207.225 mm (15.4" diagonal) |
|---|---|
| Pixel Number | 1440 x 3 x 900 |
| Resolution | 1440 x 900 pixels (WXGA+) |
| Interface | 3.3V LVDS, 2 pixel/clock |
| Power Supply Voltage | 3.0 – 3.6 V |
| LED Light Bar Input Voltage | 28 – 37 V |
| Storage Temperature | -20 to +60 °C |
| Operating Ambient Temperature | 0 to +50 °C |
| Weight | 430 – 450 g |
| Depth | 5.5 – 6.1 mm |
The screen supports a WXGA+ resolution of 1440 × 900 pixels.
Operating ambient temperature ranges from 0 °C to +50 °C, and storage temperature from –20 °C to +60 °C.
The TFT LCD module operates with a supply voltage between 3.0 V and 3.6 V.
The module weight is between 430 g and 450 g.
