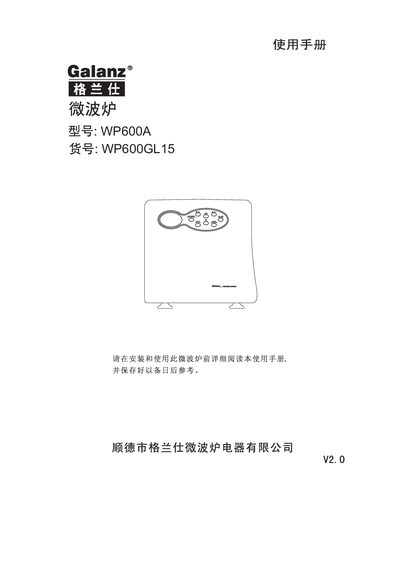

This is a microwave oven manual, model WP600GL15, it has 5 power levels, can heat, defrost, cook rice, noodles, etc., and also make coffee, tea and milk
This manual provides all the information needed to install, operate and maintain the Galanz WP600A microwave oven. It includes safety precautions, wiring diagrams, power‑level settings and cleaning guidelines.
The document also covers child‑lock activation, troubleshooting tips and specifications of the appliance, helping users get the most out of their microwave safely and efficiently. This manual is written in Chinese.
| Model | WP600A |
|---|---|
| Rated voltage / frequency | 220V~50Hz |
| Rated input power | 9508W |
| Microwave output power | 6008W |
| Rated microwave frequency | 2450MHz |
| Overall dimensions | 362mm × 360mm × 365mm |
| Cavity dimensions | 17lmm × 284mm × 27lmm |
| Cavity capacity | 15L |
| Turntable area | 0.058m² |
| Cavity volume | 10L |
| Cavity material | Sprayed galvanized sheet |
| Heating method | Dedicated glass turntable |
| Net weight | ≈13 kg |
Place the microwave at least 5 cm from each side wall and at least 10 cm from the back wall.
Press the STOP/CHILD LOCK key for 3 seconds; the lock indicator lamp will light up.
Do not exceed a load of 5 kg on the turntable.
Unplug the unit, wipe the cavity with a soft cloth and mild detergent, and avoid abrasive cleaners.
