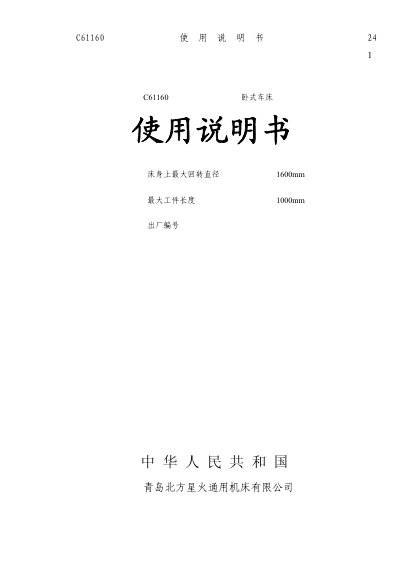

This document is the user manual for the C61160 horizontal lathe, which introduces the main parameters, performance and structure, lubrication system, lifting and installation, test run, adjustment and operation of the lathe.
The C61160 horizontal lathe from Qingdao Northern Spark is designed for turning operations on shafts, cylinders and discs using high‑speed steel or carbide tools. The manual provides a complete guide to the machine’s structure, main drive, feed system, lubrication, and safety precautions.
It includes detailed instructions for transportation, foundation preparation, installation, trial runs, regular adjustments, and operation procedures, as well as technical specifications and electrical diagrams to help users achieve optimal performance and maintain accuracy. This manual is written in Chinese.
| Maximum workpiece diameter | 1600 mm |
|---|---|
| Maximum workpiece length | 1000 mm |
| Maximum workpiece weight | 2 t |
| Machine weight | 11 t |
| Electrical power capacity | ≈25 kVA |
| Spindle speed range | 10–200 r/min |
| X‑axis rapid feed | 1000 mm/min |
| Z‑axis rapid feed | 1000 mm/min |
| X‑axis feed range | 10–50 mm/min |
| Z‑axis feed range | 10–50 mm/min |
| Main drive motor power | 15 kW |
The lathe can handle a maximum workpiece diameter of 1600 mm.
The spindle speed can be continuously varied between 10 and 200 r/min.
Both the X‑axis and Z‑axis rapid feed speeds are 1000 mm/min.
The main drive motor is a 15 kW AC variable‑frequency motor.
