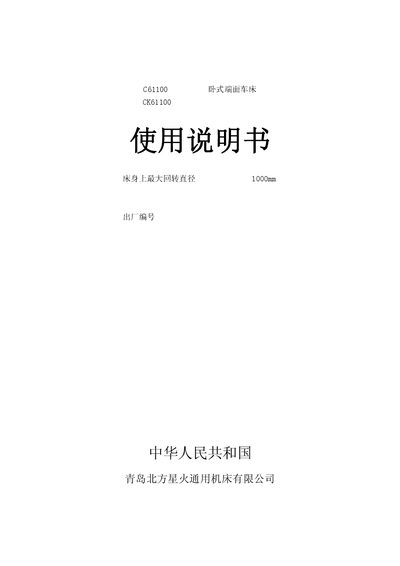

This document is the CK61100 bed-type face milling machine instruction manual, which mainly introduces the features and characteristics of the product, including main uses, applicable range, technical parameters, performance and structure, lubrication system, hoisting and installation, trial run, adjustment and operation.
The C61100/CK61100 is a horizontal end‑face lathe designed for turning shafts, disks, rings and other parts made of high‑speed steel or carbide tools. It features a variable‑frequency motor‑driven spindle with a speed range of 5‑500 r/min and a feed system driven by a similar motor, allowing easy selection of feed rates.
The manual covers safety precautions, machine overview, technical parameters, performance and structure, lubrication system, transportation and installation, trial run, adjustment and operation, electrical diagrams for both CNC and conventional versions, as well as packaging, certification and inspection procedures. This manual is written in Chinese.
| Maximum workpiece weight | 1 t |
|---|---|
| Maximum workpiece length | 500 mm |
| Machine weight | 4 t |
| Electrical total capacity | ≈15 kVA |
| Spindle speed range | 5‑500 r/min |
| Chuck diameter | 800 mm |
| Spindle front bearing diameter | 190 mm |
| X‑axis rapid feed speed | 1000 mm/min |
The machine must be handled according to the instructions in the manual before opening, lifting, installing, or operating.
Before trial running, lubricating oil should be filled into all oil reservoirs.
The spindle speed can be continuously varied from 5 to 500 r/min.
