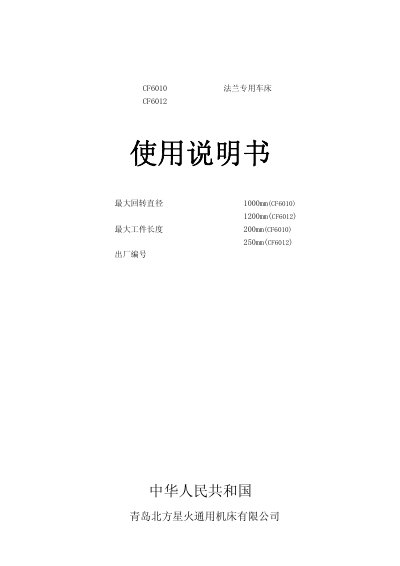

This document provides the user manual for CF6010 and CF6012 flange special lathes, including the main purpose, applicable scope, technical parameters, performance and structural introduction, lubrication system, lifting and installation, trial run, adjustment, and operation.
This manual provides detailed information on the CF6010 and CF6012 flange dedicated lathes, including their main purpose, technical parameters, and structural overview. It describes the machine's capabilities for turning flanges, valve bodies, and other disc‑type parts using high‑speed steel or carbide tools.
The document also covers the lubrication system, transportation and installation procedures, trial run adjustments, operating instructions, and safety precautions. Electrical requirements, noise considerations, and a packing list are included to assist users in setting up and maintaining the machine safely and efficiently. This manual is written in Chinese.
| Maximum workpiece diameter | 1000 mm (CF6010) / 1200 mm (CF6012) |
|---|---|
| Maximum workpiece length | 200 mm (CF6010) / 250 mm (CF6012) |
| Maximum workpiece weight | 1 t |
| Machine weight | 3.5 t |
| Electrical capacity | ≈20 kVA |
| Spindle speed range | 8 – 120 r/min |
| Chuck diameter | φ800 mm (CF6010) / φ1000 mm (CF6012) |
| X‑axis feed speed | 0 – 50 mm/min |
| Z‑axis feed speed | 0 – 50 mm/min |
| Main drive motor power | 11 kW (AC variable‑frequency) |
| Feed motor power | 1.1 kW (AC variable‑frequency) |
| Lubrication motor power | 120 W |
The CF6010 can handle up to 1000 mm, while the CF6012 can handle up to 1200 mm in diameter.
The machine requires approximately 20 kVA of electrical capacity.
The lathe has a weight of about 3.5 tons.
The spindle speed can be continuously varied between 8 and 120 r/min.
