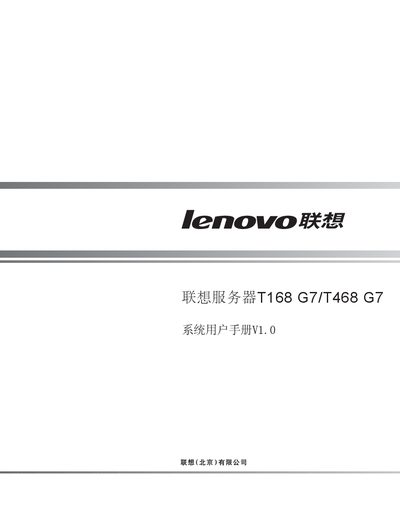

This document introduces the features, specifications, and functional characteristics of Lenovo servers T168 G7/T468 G7, including high reliability, high availability, high scalability, high manageability, and environmental friendliness.
This manual introduces the Lenovo T168 G7/T468 G7 tower servers, describing their key features such as high reliability with ECC DDR3 memory, hot‑swap drive support, and intelligent fan control. It outlines the intended applications for small‑ to medium‑size enterprises, including file printing, databases, NAS, mail, and web services.
The document details the server’s hardware architecture, including processor options, memory slots, storage interfaces, expansion slots, power specifications, dimensions, and environmental limits. It also covers system management tools, operating‑system installation procedures, and environmental compliance information. This manual is written in Chinese.
| Supported processors | Intel Sandy Bridge Xeon/i3/Pentium series |
|---|---|
| Memory slots | 4 DIMM slots |
| Storage interfaces | SATA II / SAS, supports RAID 0/1/5/10/50 |
| PCI expansion slots | 1 × PCIe Gen2 x16 (x8), 2 × PCIe Gen2 x8 (x8 & x4), 1 × PCI 32/33 |
| Power supply | 350 W single power supply |
| Dimensions | 430 mm × 195 mm × 595 mm (H × W × D) |
| Weight | 25 kg (minimum) – 32 kg (maximum) |
| Operating temperature | 10 °C – 35 °C |
| Power input | 200‑240 V, 50‑60 Hz |
The server supports Intel Sandy Bridge series processors, including Xeon, Core, and Pentium models.
The server supports both SATA II and SAS drives and can be configured with RAID 0, 1, 5, 10, or 50.
The navigation software included with the server provides an automatic OS installation feature that can install supported Windows and Linux versions.
