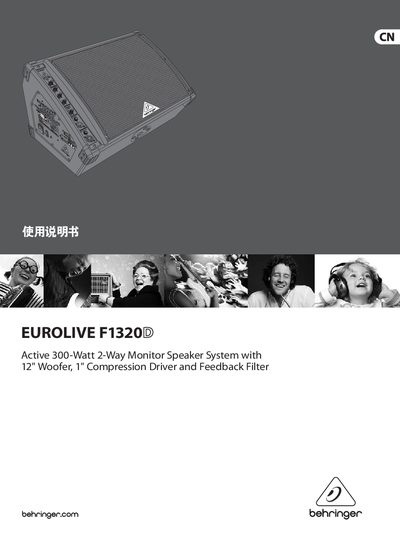

This manual introduces the EUROLIVE F1320D active speaker product features, functions and usage methods.
The EUROLIVE F1320D is a 300‑Watt 2‑way active monitor speaker featuring a 12" woofer, a 1" compression driver and a built‑in feedback filter. The document explains the speaker’s power ratings, frequency response, dimensions and safety precautions.
Detailed sections cover input and output connections (balanced XLR and 1/4" TRS), wiring diagrams, link output, and how to correctly bridge ring and sleeve for balanced/unbalanced plugs. Safety warnings advise against exposure to fire, rain and hearing damage, and the manual lists serial‑number and warranty information.
| Power Output | 300 W @ 8 Ω |
|---|---|
| Woofer Size | 12 inches |
| Compression Driver Size | 1 inch |
| Input Sensitivity (XLR) | -50 dBu |
When using a balanced plug, bridge the ring and sleeve on the stereo plug; for unbalanced use, bridge pin 1 and pin 3.
The speaker delivers 300 W RMS at 1 % THD into an 8 Ω load.
