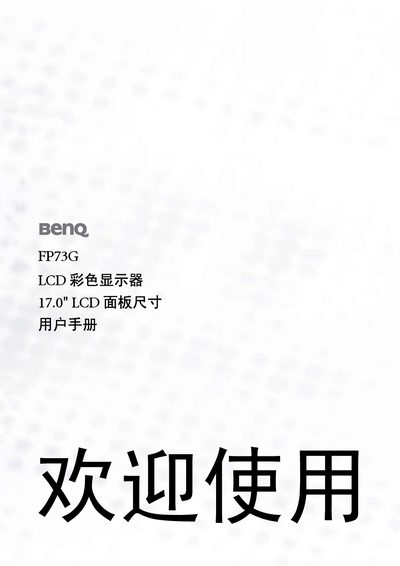

This is the user manual of BenQ FP73G display, which mainly introduces the installation, use and maintenance of the display.
This manual begins with safety instructions, power‑connection guidelines, and cleaning recommendations for the BenQ FP73G LCD monitor. It explains how to unpack, connect the power cord, DVI‑D or D‑Sub video cables, and mount the monitor on a desk or wall rack.
The later sections cover basic operation, Windows screen‑resolution and refresh‑rate adjustments, image‑optimization settings, and troubleshooting tips. A full specification table lists display size, resolution, contrast, brightness, response time, power consumption, and environmental limits. This manual is written in Chinese.
| Display type | 17.0" active TFT |
|---|---|
| Resolution | 1280 x 1024 |
| Typical contrast ratio | 700:1 |
| Typical brightness | 300 cd/m2 |
| Maximum power consumption | 40 W |
| Standby power consumption | 1 W (120 V) / <2 W (240 V) |
| Input signal (analog) | RGB 0.7 Vpp / 75 Ω |
| Dimensions (HxWxD) | 363.8 x 956.5 x 1395 mm |
| Weight | 3.7 kg |
Unplug the monitor, then wipe the screen with a non‑abrasive cloth and avoid any liquids or cleaning agents.
The monitor operates on an automatic‑switching power input of 90‑264 V at 47‑63 Hz.
