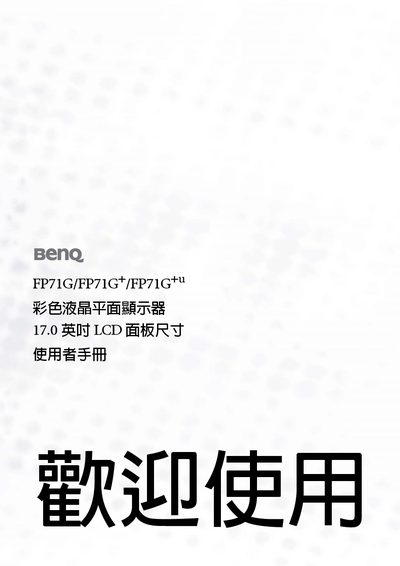

BenQ FP71G/FP71G+/FP71G+u Color LCD Flat Panel Display 17.0 inch LCD Panel Size User's Manual, includes safety instructions, installation, how to get the most out of your BenQ monitor, adjust the display, etc.
This manual provides safety instructions, installation steps, and basic operation guidance for the BenQ FP71G, FP71G+, and FP71G+U 17‑inch LCD monitors. It includes warnings about power handling, cleaning, and proper handling to ensure optimal performance and longevity.
The document also lists detailed product specifications such as display size, resolution, color depth, contrast, response time, and power consumption, as well as compliance certifications and supported input signals. This manual is written in Chinese.
| 显示器类型 | 17.0 英寸 TFT |
|---|---|
| 可视对角长度 | 43.2 公分 |
| 最大分辨率 | 1280 x 1024 |
| 色彩 | 1,620 万 |
| 对比/亮度 | 500:1 / 300 cd/m2 |
| 响应时间 | 8 ms |
| 可视角 | 140°/130° (CR=10) |
| 刷新频率 | 30‑83 kHz (56‑76 Hz image frequency) |
| 最大电源消耗 | 40 瓦特 |
| 输入信号 | RGB analog 0.7 Vpp/75 Ω, TTL sync via 15‑pin mini D‑sub |
| 工作电压 | 90‑264 V AC, 47‑63 Hz |
Use a soft, lint‑free cloth and avoid abrasive cleaners; do not spray liquids directly onto the screen.
Self‑repair is not recommended because opening the unit may expose you to electric shock or other hazards; use qualified service personnel.
The monitor operates on an AC input of 90‑264 V at 47‑63 Hz.
It accepts RGB analog video (0.7 Vpp/75 Ω) and TTL sync via a 15‑pin mini D‑sub connector.
