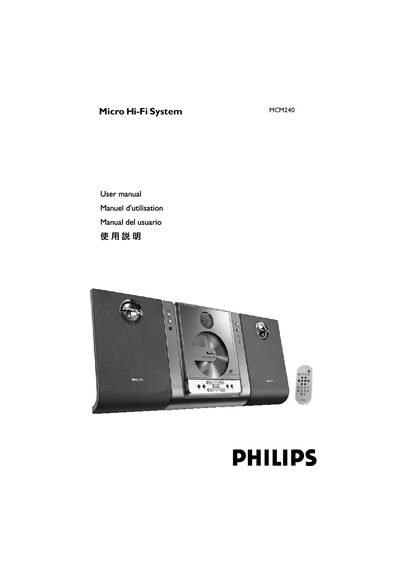

This is the user manual for Philips MCM240 Micro Hi-Fi System 2
The Philips MCM240 Micro Hi-Fi System manual provides detailed safety instructions, preparation steps, and connection guidelines for the audio system. It covers remote‑control usage, speaker wiring, antenna setup, and optional accessories.
Additional sections include clock and timer programming, technical specifications, maintenance procedures, and a troubleshooting guide to resolve common issues such as disc errors or power problems. This manual is written in Spanish.
| Amplifier output power | 2 × 5 W RMS (200 W PMPO) |
|---|---|
| Signal‑to‑noise ratio | ≥ 62 dBA |
| Frequency response | 63 – 16000 Hz ± 3 dB |
| Input sensitivity (AUX) | 0.5 V (max 2 V) |
| Speaker impedance | 4 Ω |
| Headphone impedance | 32 Ω |
| CD player frequency range | 30 – 16000 Hz |
| CD player SNR | 75 dBA |
| FM band range | 87.5 – 108 MHz |
| Standby power consumption | < 7 W |
In standby or power‑on mode, hold the DISPLAY/CLOCK key on the remote for three seconds, then use the VOLUME (+/‑) keys to adjust hours and minutes, confirming with DISPLAY/CLOCK.
Connect the speaker wires to the SPEAKERS terminals, matching the right speaker to the "RIGHT" terminal and the left speaker to the "LEFT" terminal, observing polarity (+/‑).
