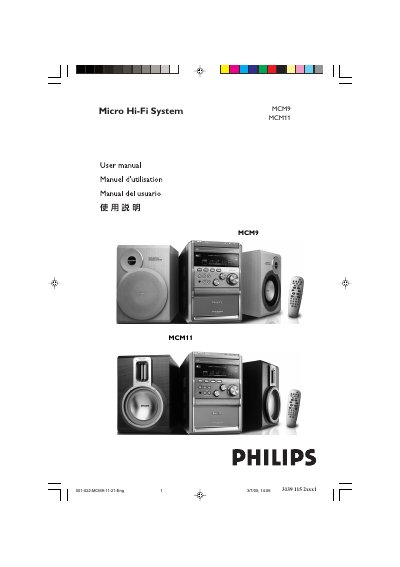

This document is about the Philips Micro Hi-Fi System MCM9 and MCM11, including product features, usage methods, precautions, etc.
This manual provides step‑by‑step instructions for installing, connecting, and operating the Philips MCM9 and MCM11 Micro Hi‑Fi system. It covers safety precautions, voltage selection, speaker wiring, remote‑control functions, and how to use the CD, radio, tape, and AUX modes.
Technical specifications, timer and clock settings, troubleshooting tips, and warranty information are also included to help users maintain optimal performance. This manual is written in Spanish.
| Output Power (MCM11) | 2500 W PMPO, 2 × 75 W RMS |
|---|---|
| Signal‑to‑Noise Ratio | ≥ 75 dBA (IEC) |
| Frequency Response | 50 – 20000 Hz, –3 dB |
| Input Sensitivity (AUX/CDR) | 500 mV / 1 V |
| Speaker Impedance | ≥ 6 Ω |
| Power Consumption (MCM9) | 45 W (operating) |
| Power Consumption (MCM11) | 40 W (operating) |
Locate the voltage selector on the back of the unit and set it to 110V‑127V before turning the power on.
Connect the right‑hand speaker to the “R” terminal and the left‑hand speaker to the “L” terminal; the colored wire (+) goes to the positive terminal and the black wire (‑) to the negative terminal, ensuring a secure fit.
